Description

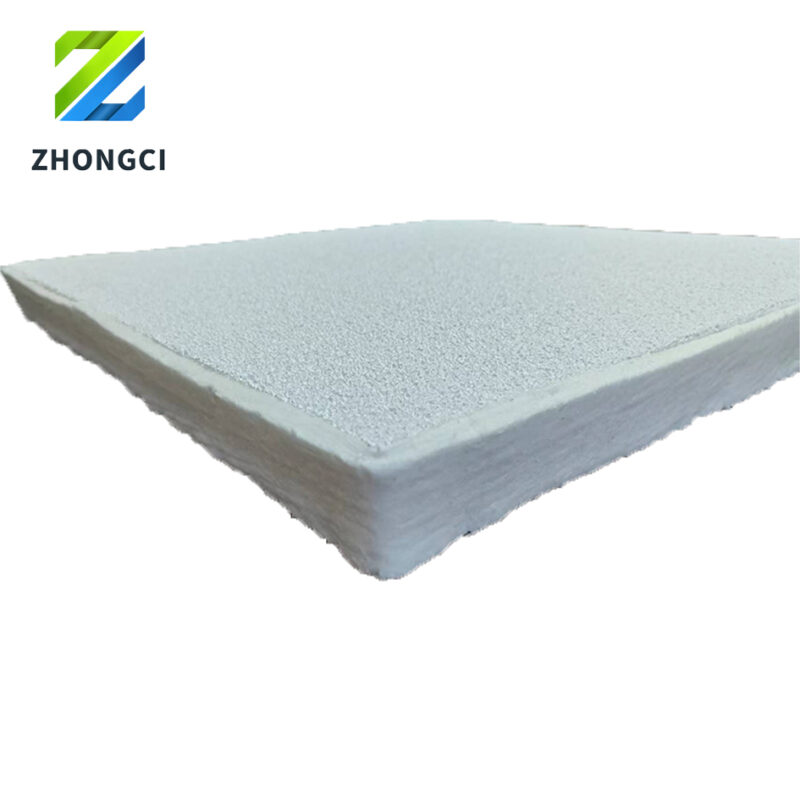

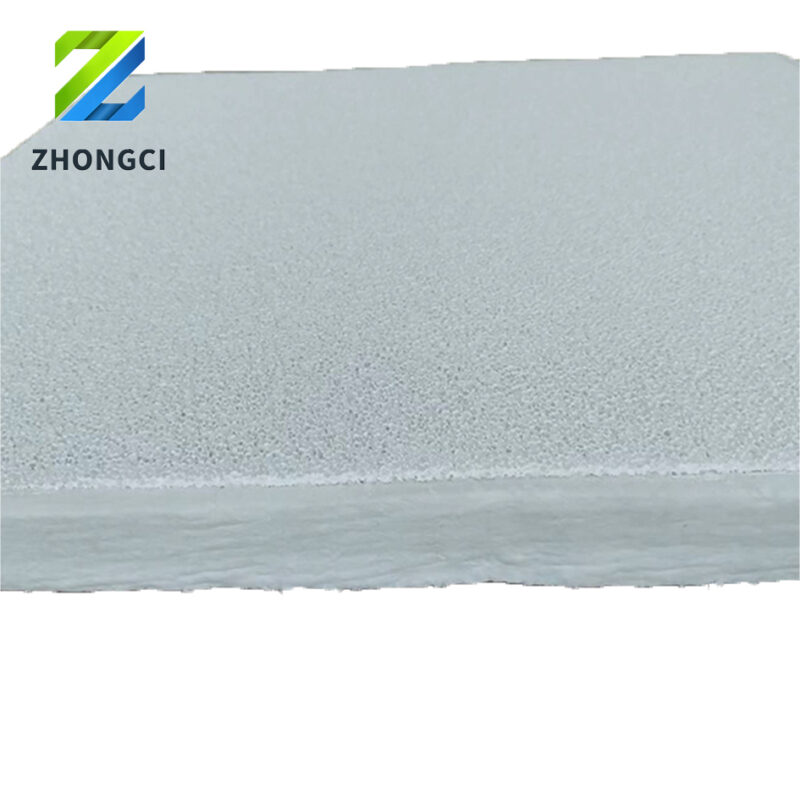

Ceramic foam filter brick microporous ceramic filter plate alumina ceramic filter plate aluminum water filter

Ceramic foam filter is a kind of porous material with high temperature characteristics.

Alumina ceramic filter plate

pore size ranges from nanometer to micron, its porosity is between 20% and 95%, and its operating temperature is room temperature 1600°C.

Due to its high porosity, high specific surface area, thermal shock resistance, high temperature resistance, chemical resistance, good mechanical strength, good filtration and adsorption properties, Ceramic Foam Filter can be widely used in heat exchange materials, cloth gas materials, automobile exhaust equipment, purification metallurgy, industrial filtration of molten metal, thermal energy recovery,

light industrial spraying industry, industrial wastewater treatment, thermal insulation material, chemical Honeycomb Substrate. Ceramic Foam Filter have been used in automotive catalytic converters for a long time. The deodorant ceramic foam filter catalyst enables the catalytic combustion of organic solvents and malodorous gases in the waste water to achieve the purpose of deodorization and purification.

The use of high-permeability Ceramic Foam Filter that are resistant to high temperatures and have sufficient thermal shock resistance can effectively remove high-temperature dust gases. In the process of urban sewage treatment, Ceramic Foam Filter also become one material for aeration treatment in urban sewage treatment.

Dimensions(mm)	Dimensions (inch)	Pouring Rate (kg/s)	Filtration Capacity (ton)
178×178×50	7×7×2	0.2-0.6	5
228×228×50	9×9×2	0.3-1.0	10
305×305×50	12×12×2	0.8-2.5	15
381×381×50	15×15×2	2.2-4.5	25
430×430×50	17×17×2	3.0-5.5	35
508×508×50	20×20×2	4.0-6.5	45
585×585×50	23×23×2	5.0-8.6	60

Technical data of alumina foam filters

Material	ZrO2	SIC	Al2O3
Color	Yellow	Gray	White
Pore Density (ppi)	10-60	10-60	10-60
Porosity(%)	80-90	80-90	80-90
Operating Temperature (ºC)	1700	1500	1100
Compression Strength (MPa)	1.2	0.9	0.8
Density (g/cm3)	0.90-1.50	0.35-0.50	0.30-0.45
Thermal Shock Resistance (1100-20ºC)	>6 times	>6 times	>6 times
Application	Steel	Iron	Non-Ferrous Alloy and Aluminium

Feature

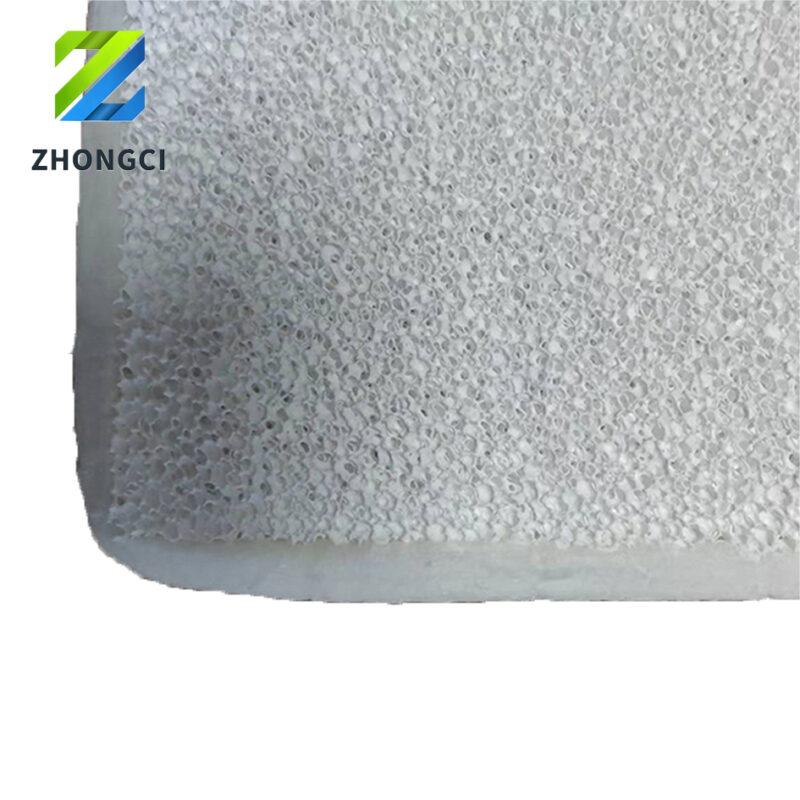

Ceramic foam is a new industrial ceramic products with low bulk density (0.25 ~ 0.65) g/cm3, high porosity (60% ~ 90%), and three-dimensional reticulated structure. As ceramic foam has excellent properties such like: high temperature resistance, strong chemical corrosion resistance, and large surface area as a result of high porosity, it is widely used in molten metal filtration to remove undesirable nonmetallic inclusions in the melt.

Maximum Temperature
Up to 1000C for porous ceramic, limited only by sealants, gaskets and/or hardware materials.

Corrosion Resistance
Porous ceramics are resistant to most acids, except for  Phosphoric Acid. In alkaline solutions, porous ceramics are resistant up to pH9. It is also resistant to organic solvents. The sealants, gaskets and/or hardware materials used, may be the limiting factor in certain fluids.

Cleanability
Porous ceramic is cleanable by a variety of methods, depending on type of contaminant to be removed. Methods include spraying, brushing, backwashing, oven firing, dilute acid cleaning, solvent cleaning, steam cleaning and ultrasonic cleaning.
