Description

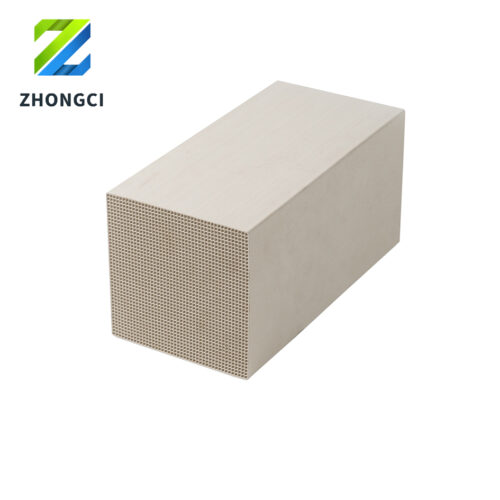

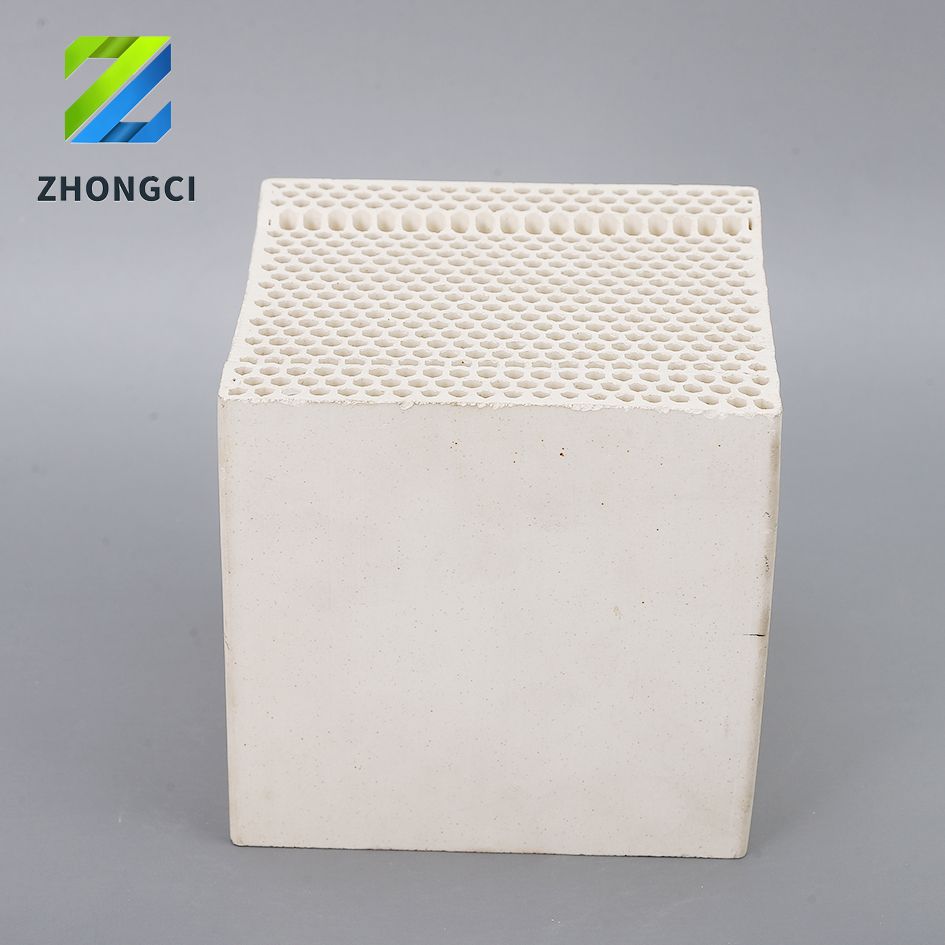

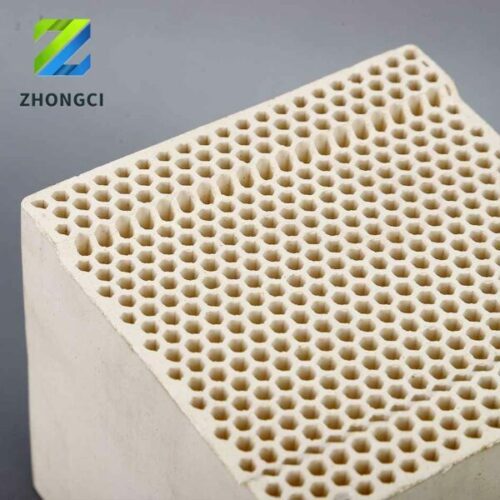

Corundum-mullite honeycomb ceramic regenerator According to the different process requirements of exhaust gas treatment (RCO, RCO),
our company develops and produces ceramic honeycomb products of various materials and sizes.
The product has the characteristics of large specific surface area, small resistance loss, low thermal expansion coefficient, high water absorption, good crack resistance, and moderate micropore diameter; it has been widely used in RO, domestic and foreign RCO equipment.
Advantages of Corundum-mullite honeycomb ceramic regenerator
- Varity of materials & specifications
- Large specific surface area
- Small resistance loss
- Low abrasion loss
- Low thermal expansion coefficient
- High water absorption
- Outstanding crack-resistance
Specification reference |
|||||||
| Size (mm) |
Quantity of channels |
Wall thickness (mm) |
Channel Width (mm) |
Surface area (m 2 /m 3 ) |
Void section (%) | Packaging density (kg/ m 3 ) |
Weight per piece (kg) |
| 150× 150× 300 | 25× 25 | 1.0 | 4.96 | 580 | 68 | 696 | 4.7 |
| 150× 150× 300 | 40× 40 | 0.7 | 3.03 | 891 | 65 | 814 | 5.5 |
| 150× 150× 300 | 50× 50 | 0.6 | 2.39 | 1090 | 63 | 903 | 6.1 |
| 150× 150× 300 | 60× 60 | 0.5 | 1.99 | 1303 | 63 | 932 | 6.3 |
| 150x100x100 | 40× 40 | 1 | 2.5 | 784 | 49 | 799 | 1.2 |
| 150x100x100 | 33×33 | 1.1 | 3.0 | 691 | 52 | 750 | 1.13 |
| 150x100x100 | 20×20 | 2.0 | 5.0 | 392 | 49 | 692 | 1.04 |
| 100x100x100 | 40×40 | 1.0 | 2.5 | 784 | 49 | 810 | 0.81 |
| 100x100x100 | 33×33 | 1.1 | 3.0 | 691 | 52 | 750 | 0.75 |
| 100x100x100 | 20×20 | 2.0 | 5.0 | 392 | 49 | 680 | 0.68 |
| Other shapes, specification and material are available. | |||||||
Alumina Ceramics
Alumina Ceramics is the most widely used advanced ceramic material. Owing to its highly strong ionic inter-atomic bonding, alumina offers good performance in terms of chemical and thermal stability, relatively good strength, thermal and electrical insulation characteristics at a reasonable price.
With a range of purities and also the relatively low cost in raw material production it is possible to utilize alumina for wide ranging applications across a variety of different industries.
Mullite Ceramics Alumina
Mullite occurs very rarely in nature because it only forms at high temperature, low pressure conditions, so as an industrial mineral, mullite has to be supplied by synthetic alternatives. Mullite is a strong candidate material for advanced ceramics in industrial process for its favourable thermal and mechanica properties:
low thermal expansion, low thermal conductivity, excellent creep resistance, suitable high temperature strength and outstanding stability under harsh chemical environments.
Dense Alumina & Dense Cordierite
Low water absorbtion (0-5%)
High density, High heat capacity
Large specific surface area, greater thermal efficiency
Strong anti-acid, anti-silicon, anti-salt. Low block rate
Silicon Carbide Ceramics
Silicon carbide is notable for its hardness, high melting-point and high thermal conductivity. It can retains its strength at temperature as high as 1400 °C and offers excellent wear resistance and thermal shock resistance.
It has well-established and wide-spread industrial applications as catalyst supports and hot-gas or molten metal filters because of its low thermal-expansion coefficient and good thermal-shock resistance as well as excellent mechanical and chemical stability at elevated temperature environments.
Cordierite Ceramics
Cordierite has a superior thermal shock resistance due to their intrinsic low coefficient of thermal expansion (CET), coupled with relatively high refractoriness and high chemical stability. Therefore, it is often used as high temperature industrial applications, such as: heat exchangers for gas turbine engines; honeycomb-shaped catalyst carriers in automobile exhaust system.
Zirconia Oxide Ceramics Corundum
Ceramics Zirconia can be an ideal material of high-strength and high-toughness when proper compositions, such as: magnesium oxide (MgO),
yttrium oxide, (Y2O3), or calcium oxide (CaO), are added to control an otherwise destructive phase transformation.
The micro structural features of zirconia ceramics also make it an engineering material choice of wear and corrosion resistance, damage and degradation tolerance in a wide range of applications.
Corundum Ceramics
1, high purity: Al2O3> 99%, good chemical resistance
2, temperature resistance, long-term use at 1600 °C, 1800 °C short-term
3, thermal shock resistance and good resistance to crack
4, slip casting, high density, high purity alumina
FAQ
Q: Are you trading company or manufacturer?
A: We are factory
Q: Factory visiting available?
A: Yes, you are welcome to visit our factory
Q: OEM service provided?
A:Yes
Q: Your product certifications?
A: ISO 9001, SGS
Q: How do I pay for my purchase order?
A: We accept T/T & L/C
Q: What is the lead time?
A: 15-30 days after first payment
Q: Dose your company accept customization?
A: Yes, we customize all products and materials to individual customer need and specifications
Q: Do you provide samples ? Is it free or extra?
A: Yes, it is free
